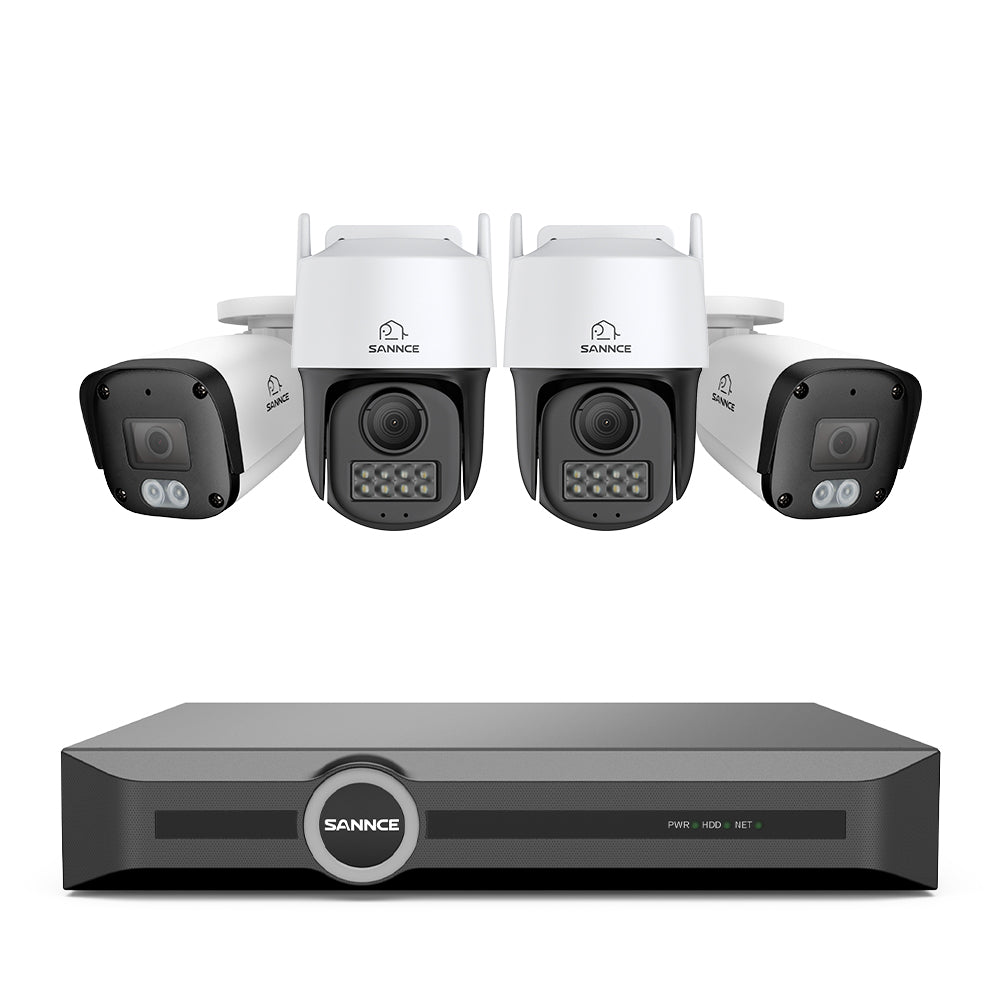

ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

SKU: SK-N98PBM000-OP+SP-KI51HR0204+SP-KI51EP0202
£159.99
£159.99
£469.99
HDD Capacity

Fast, Free Shipping.

30-Day Money-Back Guarantee.

Lifetime Customer Support & Hassle-Free Warranty.

ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

£469.99 £159.99
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached
ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

ER500 - 5MP 8 Channel PoE Security System, 6MP NVR + PT IP Cameras, S+265., AI Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

£469.99 £159.99
HDD Capacity: NO HDD

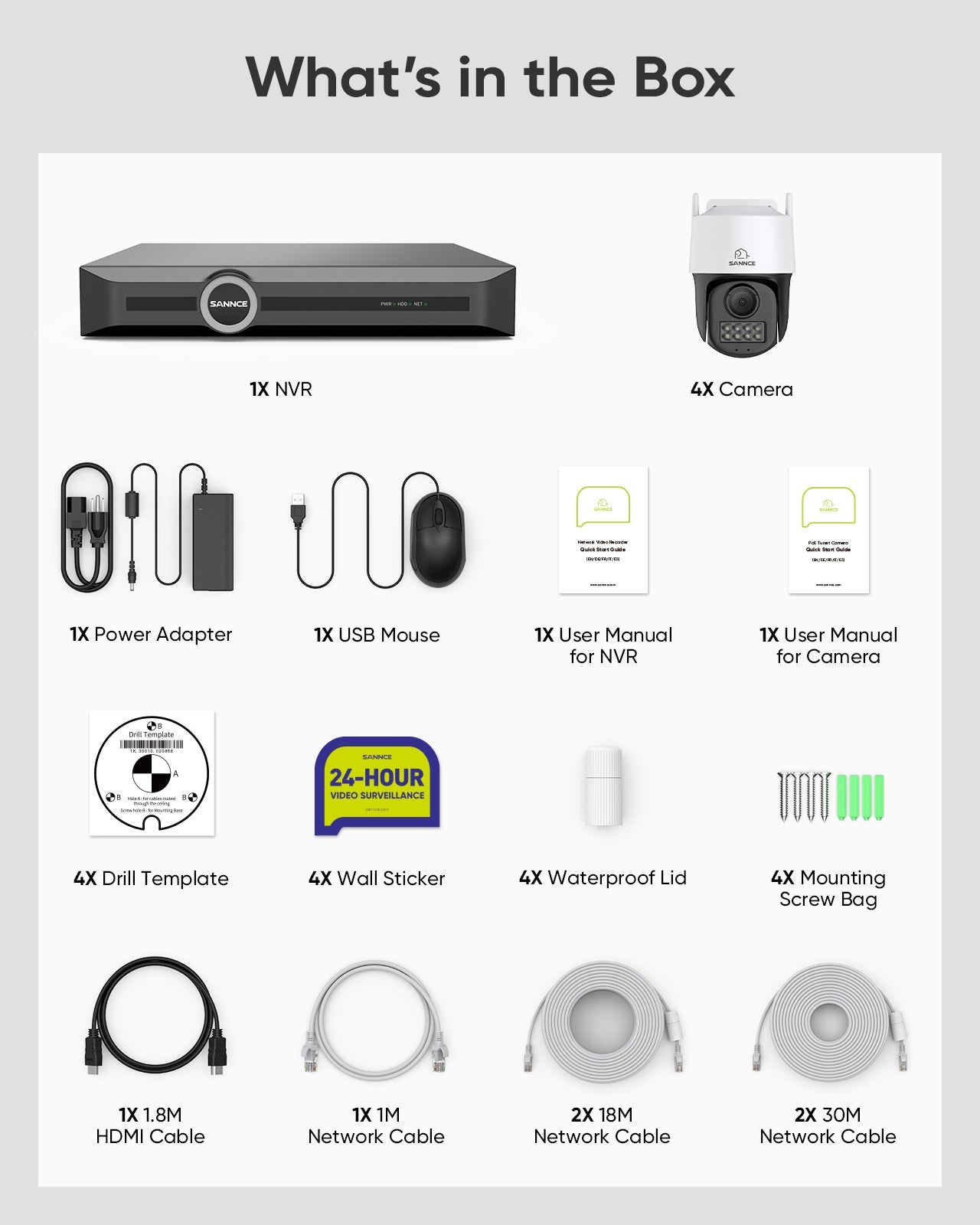

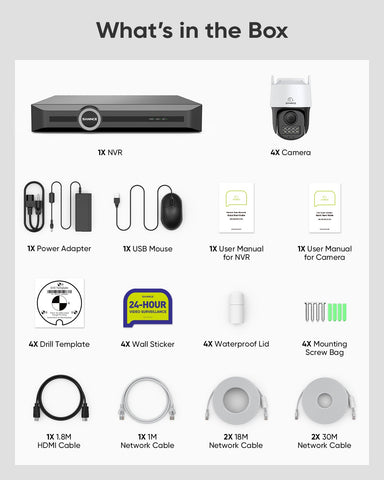

What's in the Box?

  • 1X NVR
  • 4X Cameras
  • 1X Power Adapter
  • 2X 18m Network Cable
  • 2X 30m Network Cable
  • 1X User Manual
  • 1X USB Mouse
  • 1X  1m Network Cable
  • 5X Mounting Screw Package
  • 4X Mounting Hole Template
  • 4X Window Stickers
  • 4X Waterproof Lid



Specification

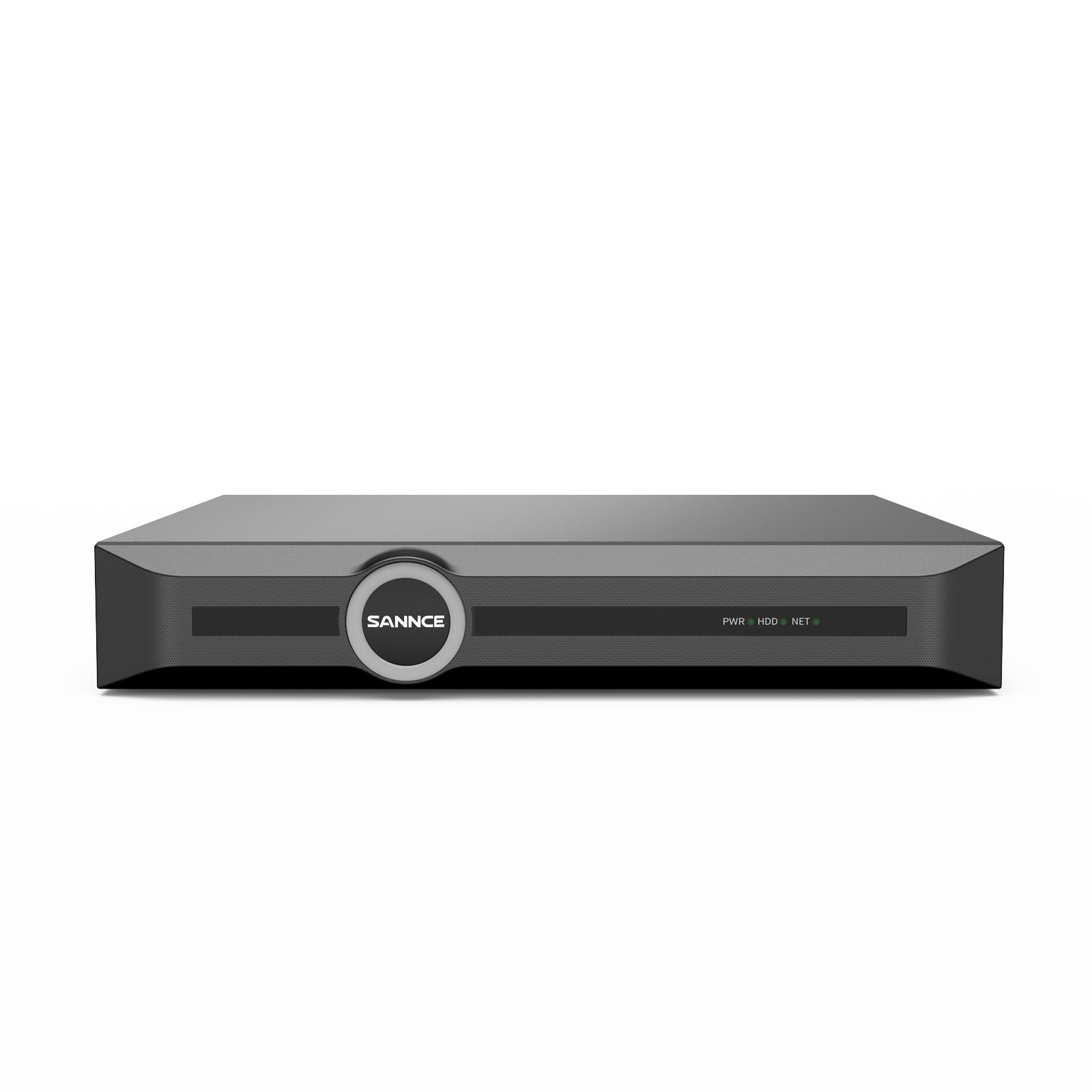

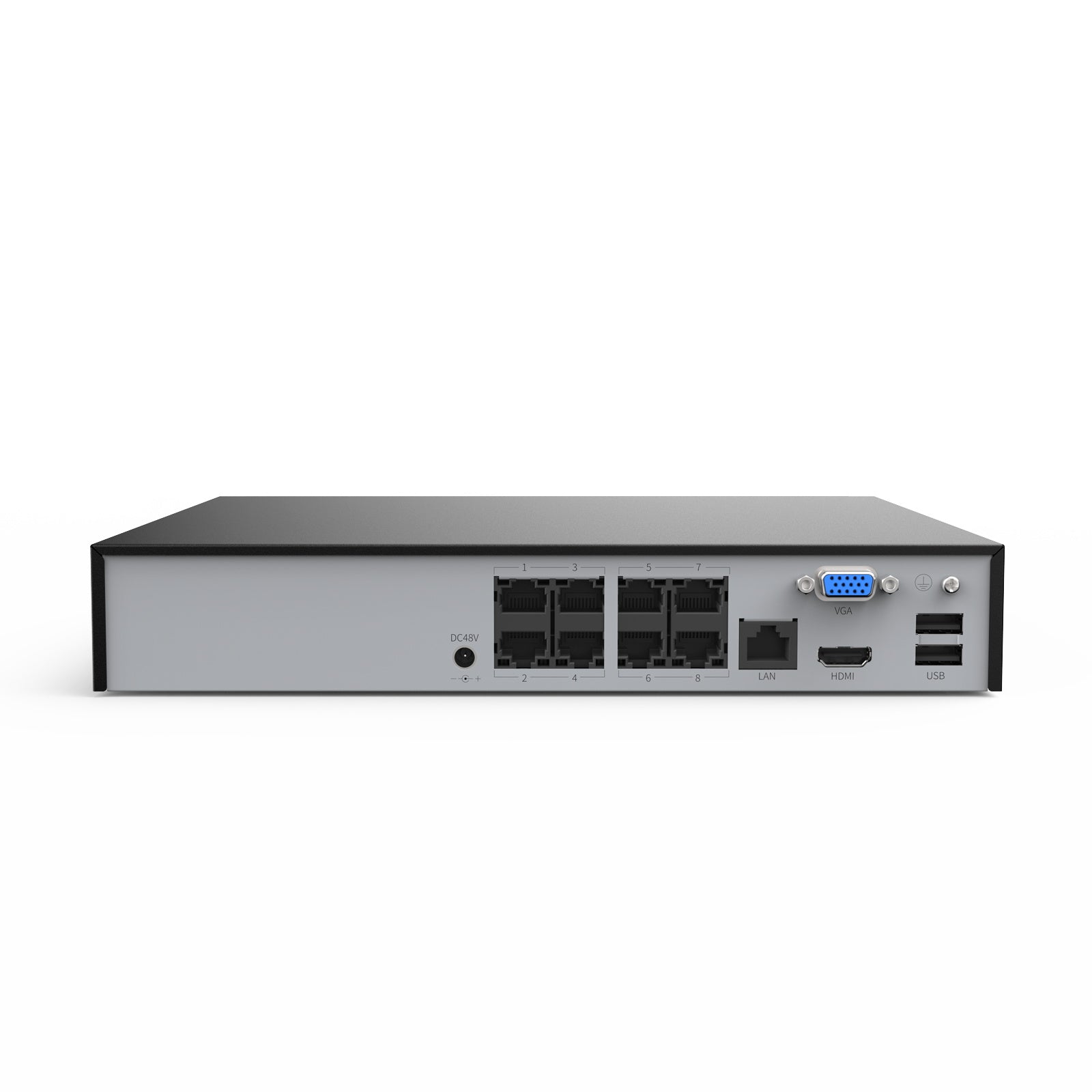

NVR
(Model Number: N98PBM)
Video & Audio Decoding Format S+265; H.265; S+264; H.264
IP Video Input 8CH PoE
Video Output HDMI: 1024×768 (60Hz), 1280×720 (50Hz/60Hz), 1280×800 (60Hz), 1440×900 (60Hz), 1920×1080 (50Hz/60Hz), Independent Output
Video Output VGA: 1024×768 (60Hz), 1280×720 (50Hz/60Hz), 1280×800 (60Hz), 1440×900 (60Hz), 1920×1080 (50Hz/60Hz)
Audio G711A; G711U; ADPCM_DIV4
Incoming/Outgoing Bandwidth 60/40 Mbps
Max Recording Resolution Up to 6MP@30fps (Frame Rate Depends on IP Camera)
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×8
Max Playback Resolution Up to 6MP@30fps (Frame Rate Depends on IP Camera)
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4
Record Playback Multi-channel Playback 4
Record Mode Alarm Recording; Schedule Recording
Storage Method Local HDD
Backup USB Storage Device
Playback Function Play / Pause / Stop / Slow / Speed / Backward 30s / Forward 30s / Full Screen / Backup (Video Editing) / Digital Zoom
Alarm General Alarm Motion Detection; Mask Alarm; Alarm Input (IPC)
Exceptions Alarm Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Disk SMART Abnormality; Disk Temperature Abnormality; PoE Overload; Voltage Alarm (IPC); RTC Failure
Storage HDD 1 SATA Interface
HDD Capacity Up to 6TB Capacity for Each HDD
Network Network Protocol ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP
Mobile Phone Access Android; iOS; P2P
System Compatibility CGI; SDK
Web Browser IE10+; Firefox 52+; Edge 89+; Safari 11+; Chrome 57+
External Port USB 2 × USB 2.0
HDMI 1 × HDMI
VGA 1 × VGA
Network Interface 1 × RJ45, 10/100 Mbps Self-adaptive Ethernet Port
PoE PoE Interface 8 × RJ45, 10/100 Mbps Self-adaptive Ethernet Port
PoE Budget 45W
Power per PoE Port 30W
Standard IEEE 802.3af/at
General UI Language English; German; French; Italian; Spanish
Operating Power DC 48V 1.35A
Power Consumption <10W (Without HDD & Without PoE)
Working Temperature 10°C to 55°C (14°F to 131°F)
Dimensions (W × H × D) 225 × 231 × 45.1 mm
Weight (Without HDD) —

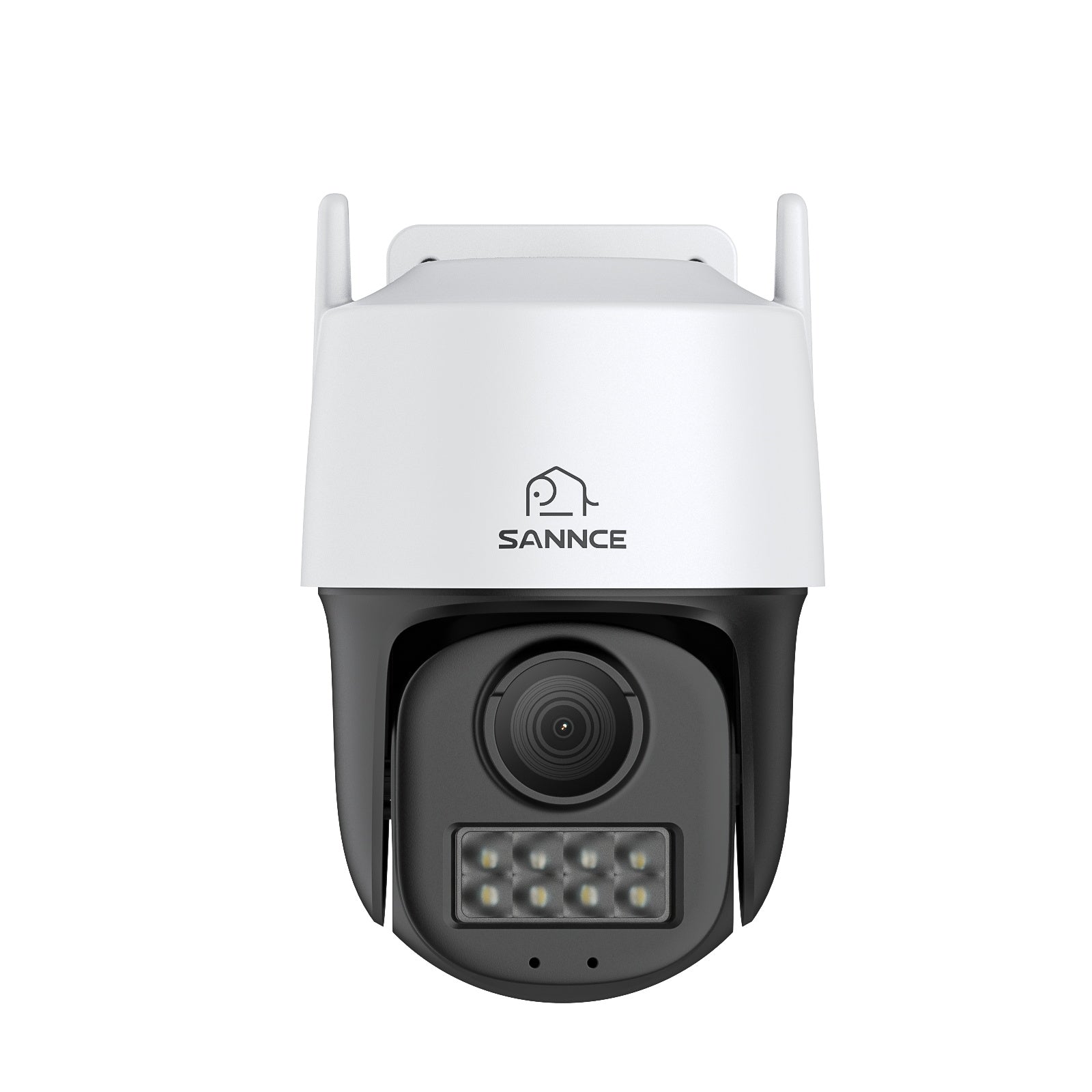

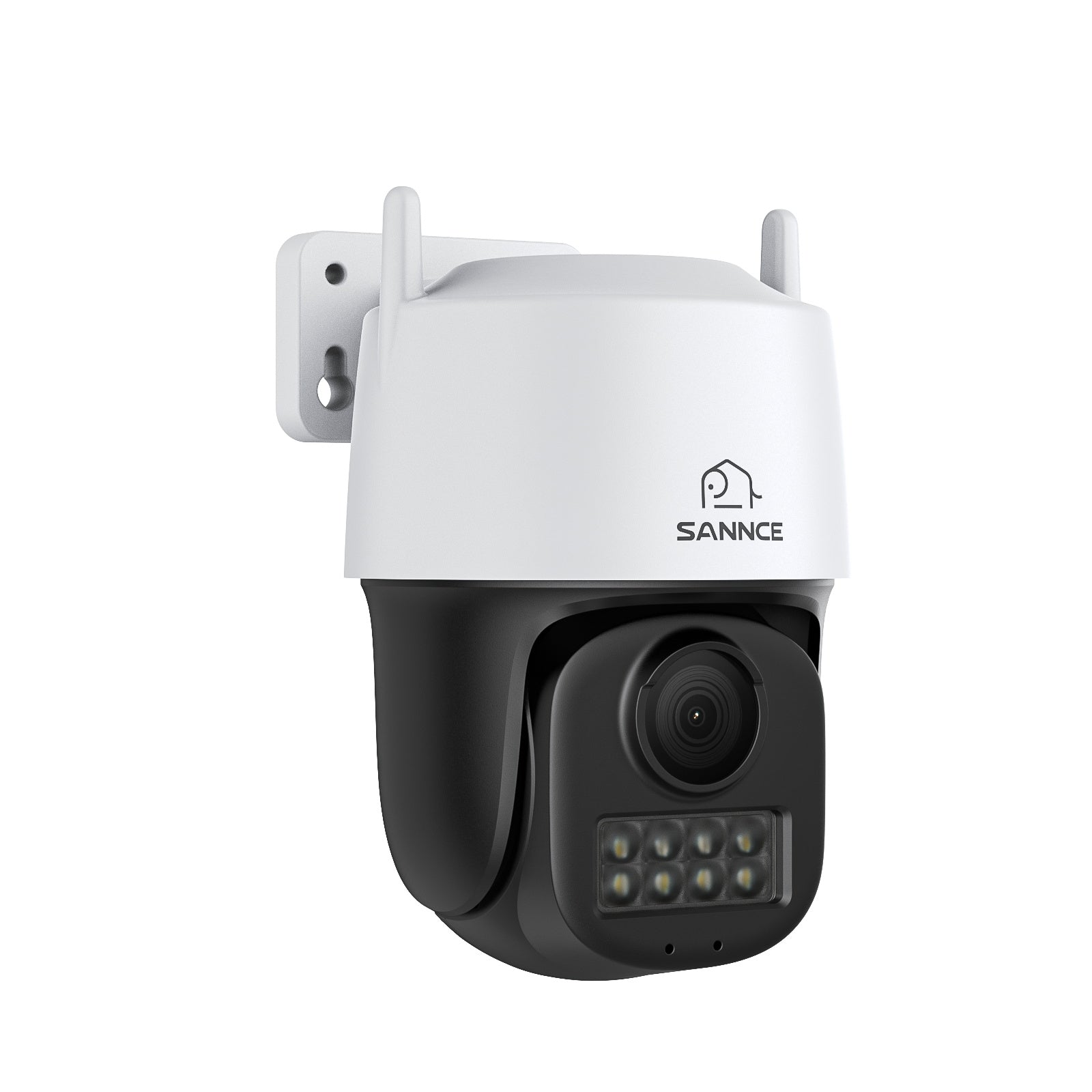

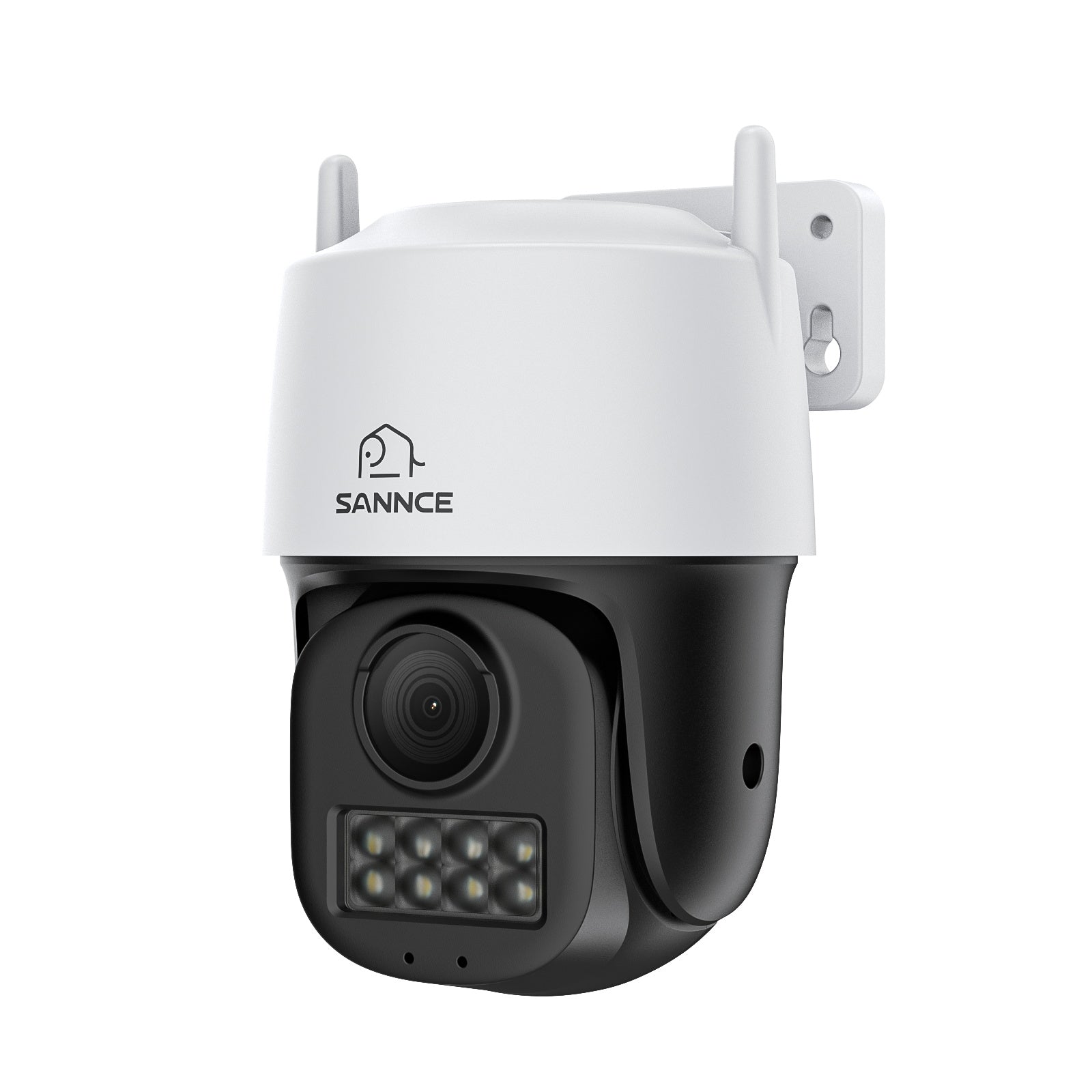

IP Camera
(Model Number: I51HR)
Camera Image Sensor 1/3" Progressive Scan CMOS
Max Resolution 5MP (2880 × 1620)
Main Stream 50Hz: 15fps (2880×1620, 2560×1440, 2304×1296, 1920×1080, 1280×720, 704×576)
60Hz: 15fps (2880×1620, 2560×1440, 2304×1296, 1920×1080, 1280×720, 704×576)
Sub Stream 50Hz: 15fps (640×360, 352×288)
60Hz: 15fps (640×360, 352×288)
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Video Bit Rate 32Kbps ~ 4Mbps
Lens 4mm @ F1.6
FOV Horizontal FOV 73.5°, Vertical FOV 40.7°, Diagonal FOV 84.2°
Supplement Light Smart IR & White Dual Fill Light (6 Lamps), 30m Max Coverage
Min. Illumination Color: 0.02 Lux (@F1.6, AGC ON); B/W: 0 Lux with IR On
Movement Range Pan: 0° ~ 294°, Tilt: 0° ~ 90°
Audio Input Built-in Microphone, Record with Audio
Audio Output Built-in Speaker, Supports 2-Way Audio and Audio Alarm
Audio Compression G711A / G711U
Audio Sampling Rate 8kHz / 16kHz
Environment Noise Filtering Yes
Image Enhancement 3D DNR, BLC, HLC, AGC, AWB
Color to Black Infrared Mode / Full-color Mode / Alert Mode / Custom Mode
Protocols HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, RTSP, IPv4, SSH, Unicast
Extended Protocol ONVIF Profile S/T, CGI
Basic Event Human & Vehicle Detection
Video Masking Static, 4 Zones, Black
Alarm Abnormal Alarm Disk Full, Disk Read/Write Error, Recording Abnormality, IP Conflict, MAC Conflict, Network Cable Disconnection (Log)
Alarm Linkage Alarm Linkage Tracking, Audio Alert, Video Recording, Snapshot
General Material Plastic
Color White & Black
Operating Power DC 12V ±25%, Max 12W; PoE IEEE 802.3af, Max 12W
Ethernet Interface 1 × RJ45 10/100Mbps Self-adaptive Ethernet Port
Storage Supports MicroSD Card (Up to 256GB)
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Indoor / Outdoor Indoor / Outdoor
Protection Level IP66
Dimensions 138 × 112 × 173 mm (5.43" × 4.41" × 6.81")
Weight 470g (1.04 lb)

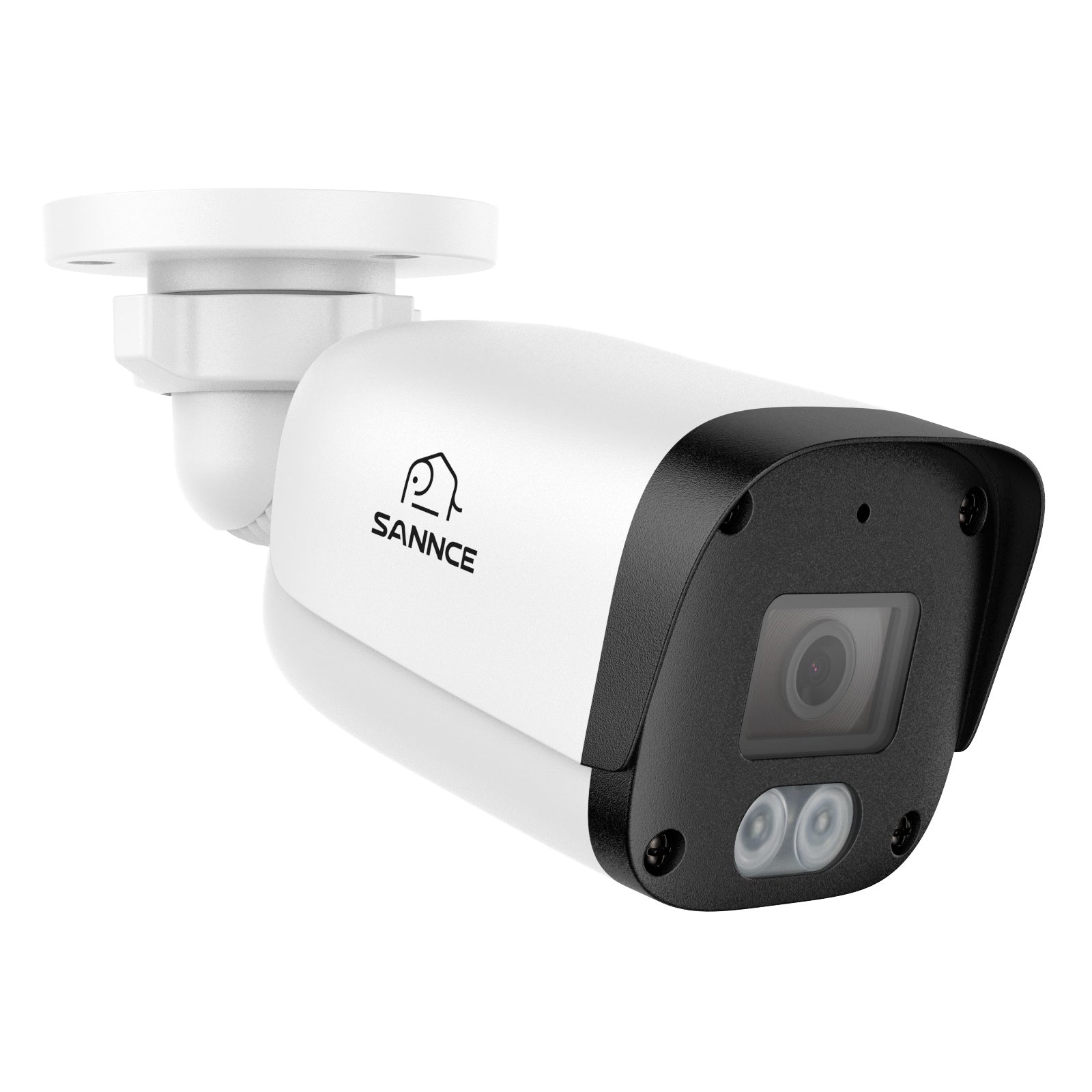

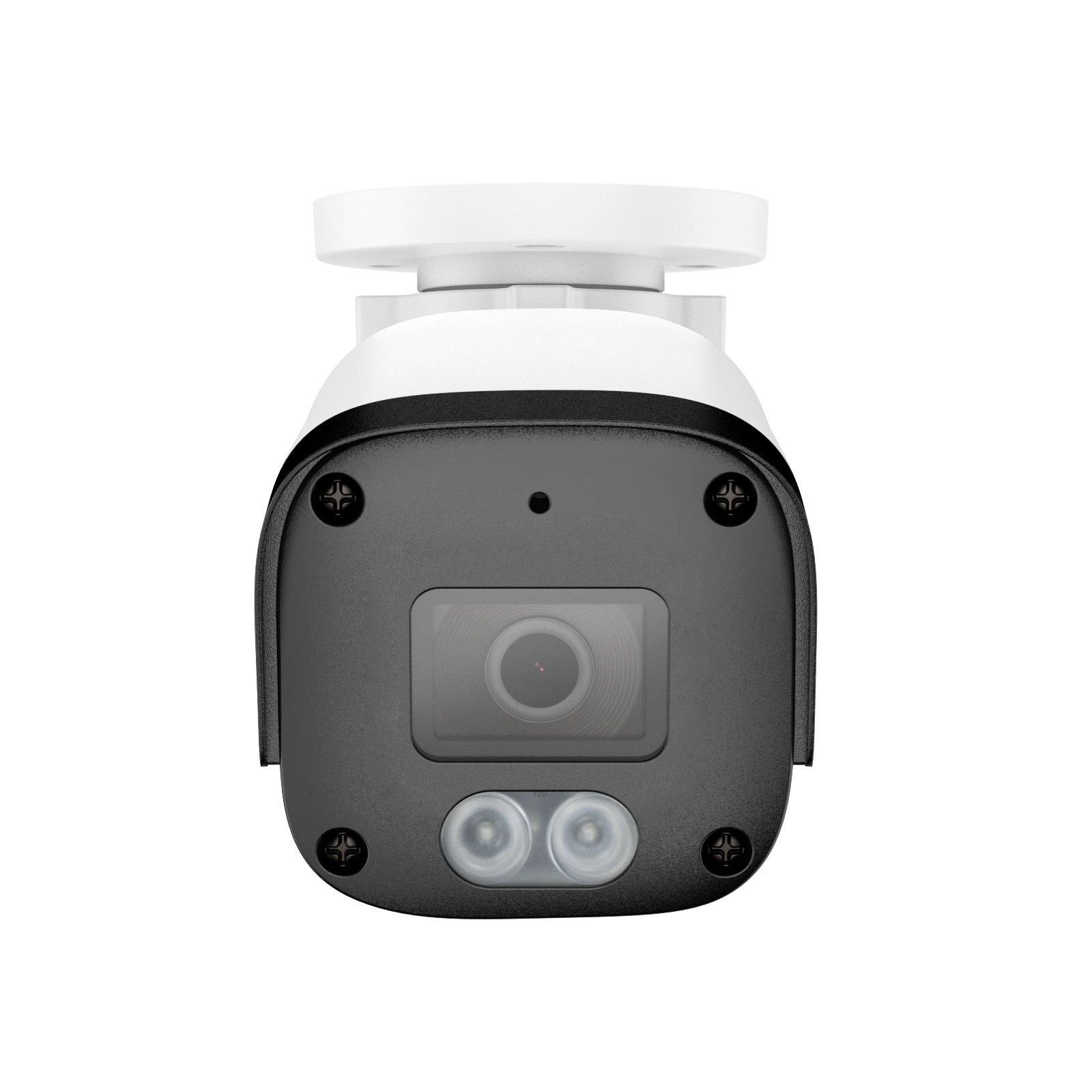

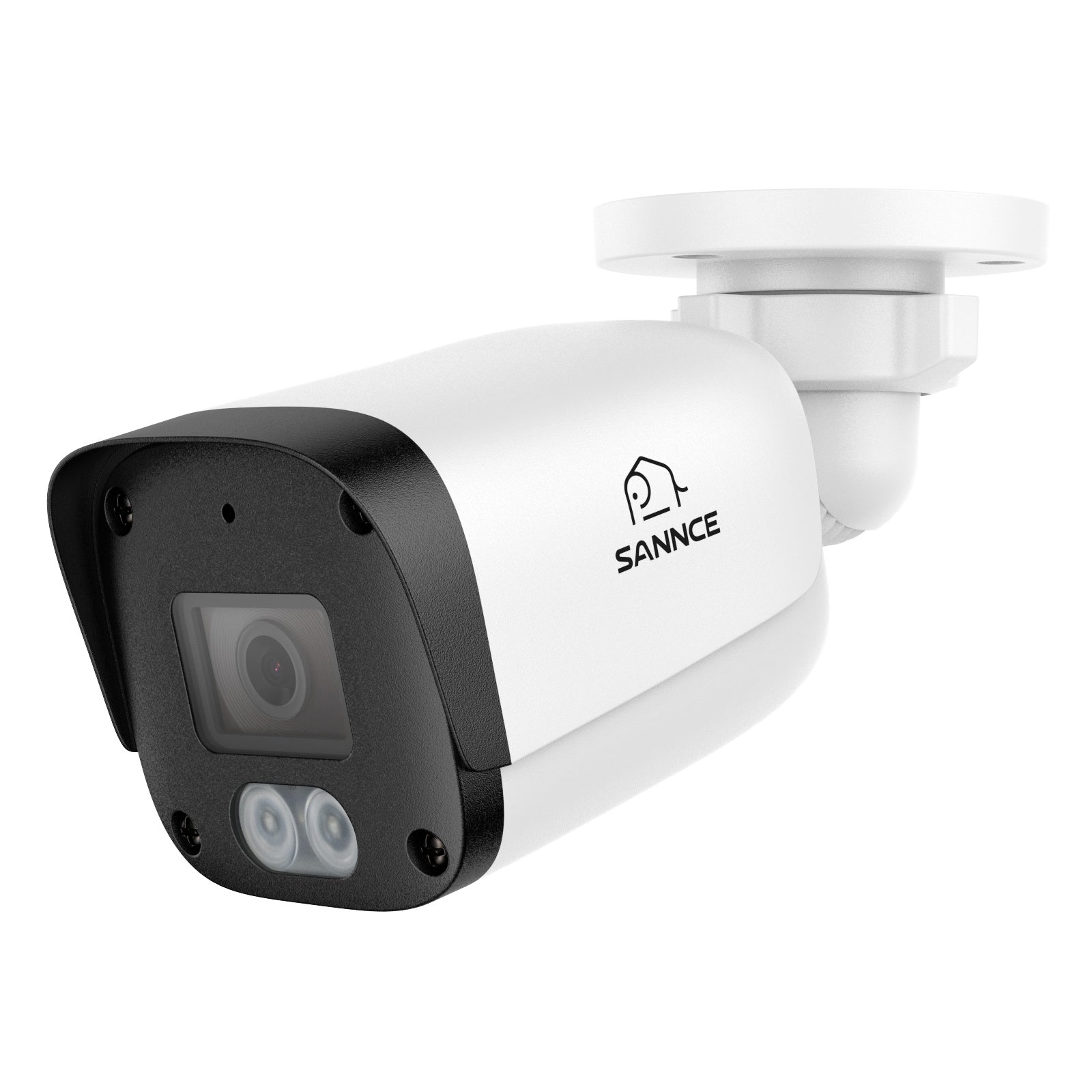

IP Camera
(Model Number: I51EW / I51EP)
Camera Image Sensor 1/3" Progressive Scan CMOS
Main Stream 50Hz: 20fps (2880×1620), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
60Hz: 20fps (2880×1620), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream 50Hz: 25fps (704×576, 704×288, 640×360, 352×288)
60Hz: 30fps (704×576, 704×288, 640×360, 352×288)
Wide Dynamic Range DWDR
Electronic Shutter 1s ~ 1/100000s
Image Processing Supports Electronic Zoom, Horizontal Flip, Vertical Flip, Video Flip, Strong Light Suppression, Backlight Compensation, Defog, Day/Night Mode Switching, Color-to-B/W Conversion, White Balance, Wide Dynamic Range, 3D Digital Noise Reduction and Smart IR.
Min. Illumination Color: 0.03 Lux (@F2.0, AGC ON); B/W: 0 Lux with IR On
Color to B/W Conversion Supports Internal Synchronization, Black & White, Color and Timing Settings
Video Parameters Brightness, Contrast, Saturation, Chroma and Sharpness Adjustable
Video Blocking 4 Zones
Lens Focal Length 2.8mm Fixed Focal Length Lens
Angle of View Horizontal FOV 95.3°, Vertical FOV 54.1°, Diagonal FOV 107.3°
Aperture F2.0
Lens Mount Type M12
Interface Performance Network Port 1 × RJ45 10/100Mbps Self-adaptive Ethernet Port
Audio Port Built-in MIC (Pickup Distance up to 5m)
Extended Protocol ONVIF Profile S/T, CGI
Coding Mode Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Video Bitrate 32Kbps ~ 6Mbps
Main Stream Default Bitrate 4Mbps
Audio Compression Algorithm G.711A / G.711U / ADPCM_D
Audio Sampling Rate 8kHz / 32kHz / 48kHz
Light Function Number of Infrared LEDs 2 pcs
Night Vision Distance Up to 100ft / 30m
Other Functions IE Access IE10+, Firefox 85.0.4183.121, Edge 114.0.1823.79, Safari 15.6.1, Chrome 114.0.2
IP Address Supports Static and Dynamic IP Addresses, and Custom Network Cards
Network Protocol HTTP, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, IPv4, SSH, Unicast, ARP, RTSP, FTP
System Time Clock NTP Time Calibration, Time Zone Setting, Daylight Saving Time
Remote Administration Network Remote Upgrade, Parameter Settings, Configuration Import and Export
Smart Analysis Human & Vehicle Detection
General Functions Supports Snapshot, One-click Recovery, Password Protection, IP Blacklist and Whitelist Filtering, IP Auto-adaptation and Heartbeat
General Housing Metal & Plastic
Color White & Black
Operating Power PoE (IEEE 802.3af), Max. 6W
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Indoor / Outdoor Use Indoor / Outdoor
Interface Protection IP67, Level 4 Lightning Protection, Surge Protection up to 2KV
Dimensions (L × W × H) 116 × 116 × 95mm (4.56" × 4.56" × 3.7")
Weight 283g (0.62lb)
