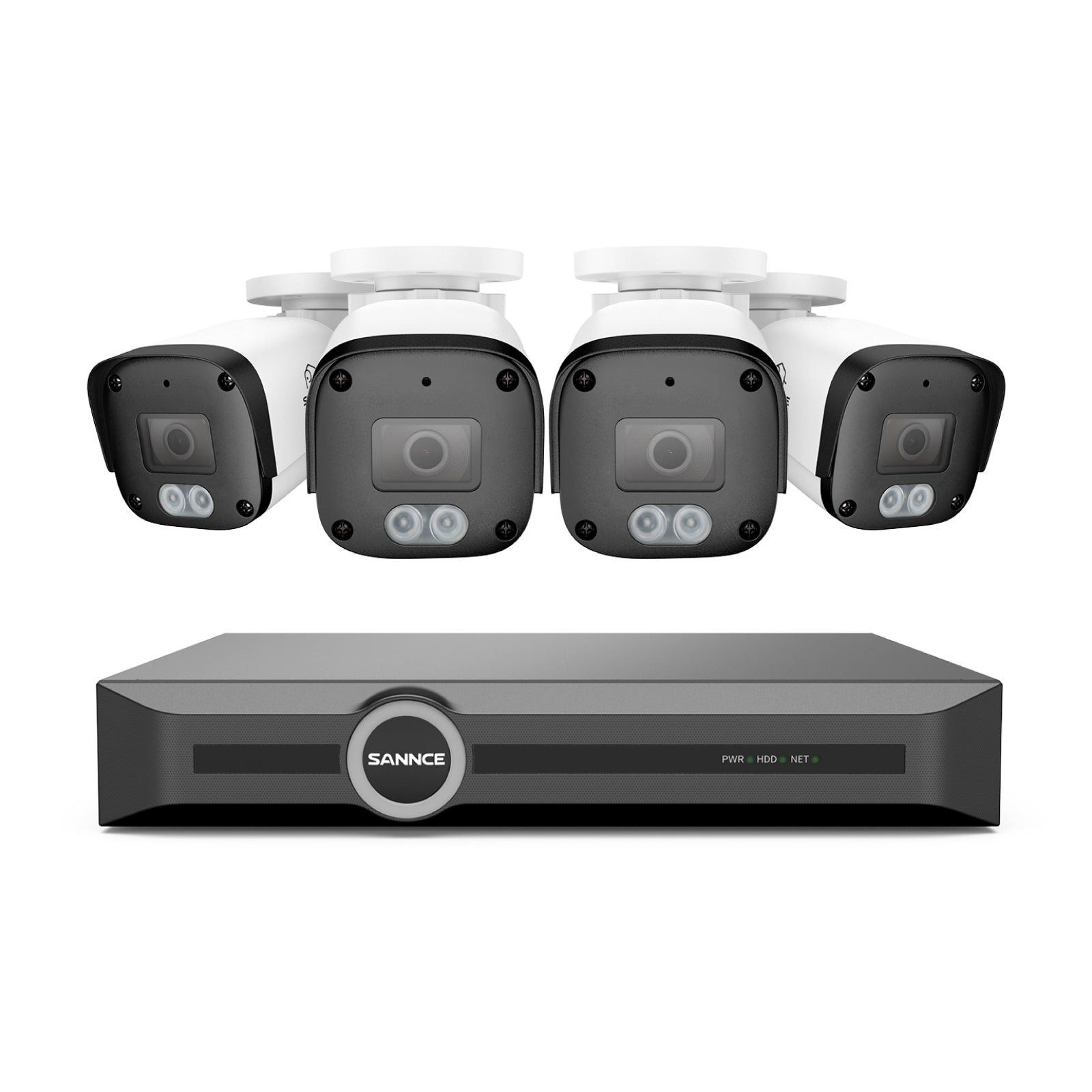

5MP 8 Channel PoE Security System, 6MP NVR, S+265., Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

SKU: SK-N98PBM0-54EP-P-OP
£139.99
£139.99
HDD Capacity:

Fast, Free Shipping

30-Day Money-Back Guarantee

Lifetime Customer Support

5MP 8 Channel PoE Security System, 6MP NVR, S+265., Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

5MP 8 Channel PoE Security System, 6MP NVR, S+265., Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

£139.99

5MP 8 Channel PoE Security System, 6MP NVR, S+265., Human & Vehicle Detection, Smart Playback, Smart Notification with Image Attached

£139.99
HDD Capacity: NO HDD
5MP Surveillance Camera

Capture ultra-clear footage with 5MP resolution (2880x1620)—2.5x sharper than 1080P. Equipped with a 1/3" Progressive Scan CMOS sensor, it delivers crisp clarity day or night. Ideal for reliable 24/7 monitoring.

In-Built Microphone

Our device, equipped with a built-in high-sensitivity microphone and advanced environmental noise filtering technology, can capture clear audio while recording video.

HDMI/VGA Dual Output

Supports simultaneous HDMI and VGA output, with HDMI supporting up to 1080P resolution. This meets the needs of different display devices and facilitates local monitoring and presentations.

S+265 Compression Technology

Utilizes S+265 compression algorithm to reduce storage space by up to 75%. This allows the same capacity hard drive to store longer recordings, reduces the frequency of hard drive replacements, and minimizes storage costs. It also decreases network transmission buffering, improving recording efficiency.

Supports up to 6MP IPCs

Capable of connecting to network cameras with a maximum resolution of 6MP (6 million pixels), allowing for real-time preview, recording, and playback at 6MP. Compatible with various resolutions, including 6MP, 5MP, 4MP, 3MP, and 2MP, to meet different high-definition surveillance needs.

AI-based Human and Vehicle Detection

Supports IPCs with AI human and vehicle detection capabilities, reducing false alarms and improving the accuracy and reliability of surveillance. Important events are not missed.

Smart Playback

Enables quick location and playback of human and vehicle detection segments, improving playback efficiency and saving time and effort (IPC must support human and vehicle detection).

Hard Drive Support

Supports one hard drive with a maximum capacity of 6TB, ensuring sufficient storage for long-term recordings and providing reliable storage for surveillance data.

Multi-device Access

Supports simultaneous login and viewing on multiple devices, including smartphones, tablets, and computers. Users can access surveillance footage anytime, anywhere.

Instant Notification with Image Attached

Stay ahead of potential threats with our advanced NVR system, designed to deliver real-time security alerts straight to your inbox – complete with visual evidence.

IP67 Rated, Extreme Temperature Resistant

With an IP67 protection rating, it’s fully dustproof and can withstand short-term immersion in water up to 1 meter deep. Plus, it operates reliably in extreme temperatures from -30°C to +60°C (-22°F to +140°F), ensuring consistent performance in harsh conditions.

What's in the Box?

1X NVR

4X Cameras

Power Adapter

2X 18m Network Cable

2X 30m Network Cable

1X User Manual

1X USB Mouse

1X  1m Network Cable

Mounting Screw Package

4X Window Stickers



Specification
NVR
(Model Number: N98PBM)
Video & Audio Decoding Format S+265; H.265; S+264; H.264
IP Video Input 8CH PoE
Video Output HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),
(1080P)1920×1080(50Hz/60Hz),independent output
VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),
(1080P)1920×1080(50Hz/60Hz)
Audio G711A; G711U; ADPCM_DIV4
Incoming/outgoing Bandwidth 60/40 Mbps
Max Recording Resolution Up to 6MP@30fps(Frame rate depends on IP camera)
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8,
4CIF(30fps)×8
Max Playback Resolution Up to 6MP@30fps(Frame rate depends on IP camera)
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4
Record Playback Multi-channel Playback 4
Record Mode Alarm Recording; Schedule Recording
Storage Method Local HDD
Backup USB storage device
Playback Function Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital
Zoom
Alarm General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W
Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE
Overload; Voltage Alarm(IPC); RTC Failure
Storage HDD 1 SATA Interface
HDD Capacity Up to 6 TB capacity for each HDD
Network Network Protocol ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP;
UDP; Unicast; UPnP
Mobile Phone Access Android; iOS; P2P
System Compatibility CGI; SDK
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
External Port USB 2×USB2.0
HDMI 1×HDMI
VGA 1×VGA
Network Interface 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
PoE PoE Interface 8×RJ45, 10/100 Mbps self-adaptive Ethernet port
PoE Budget 45W
Power per PoE Port 30W
Standard IEEE 802.3 af/at
General UI Language English; German; French; Italian; Spanish
Operating Power DC48V 1.35A
Power Consumption <10W(without HDD & without PoE)
Working Temperature 10 °C to 55 °C (14 °F to 131 °F)
Dimensions (W X H X D) 225 mm × 231 mm × 45.1 mm
Weight (Without Hard Disk) kg

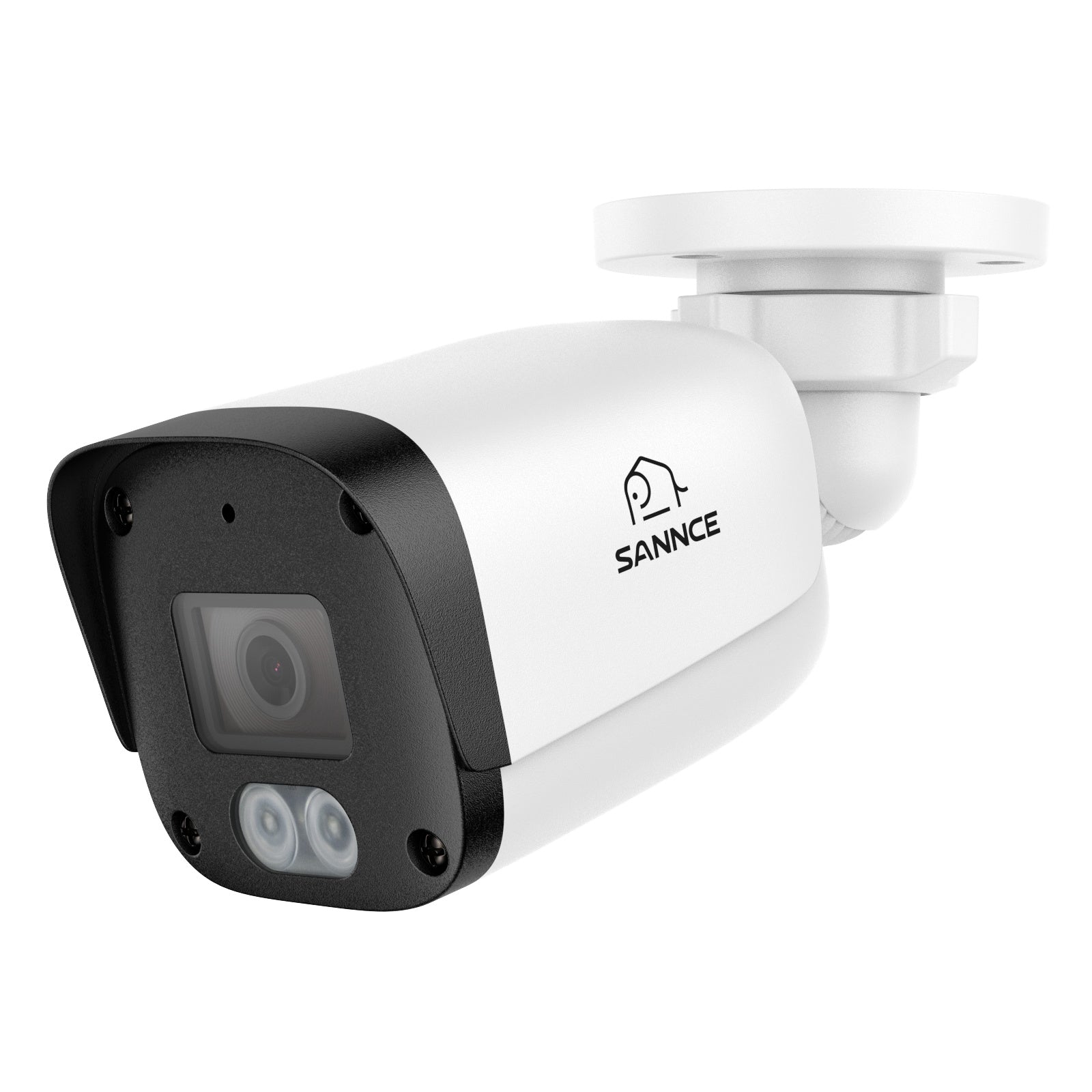

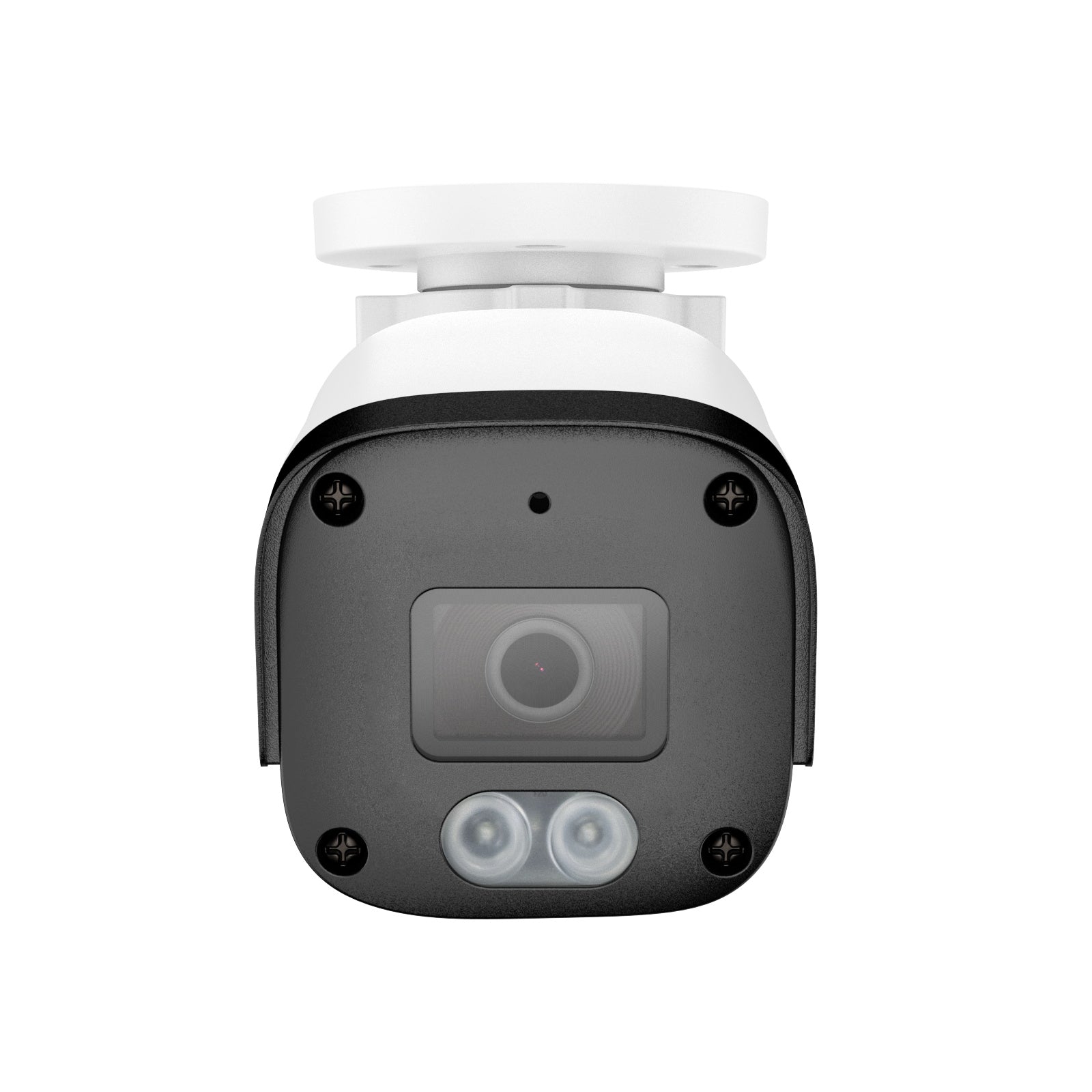

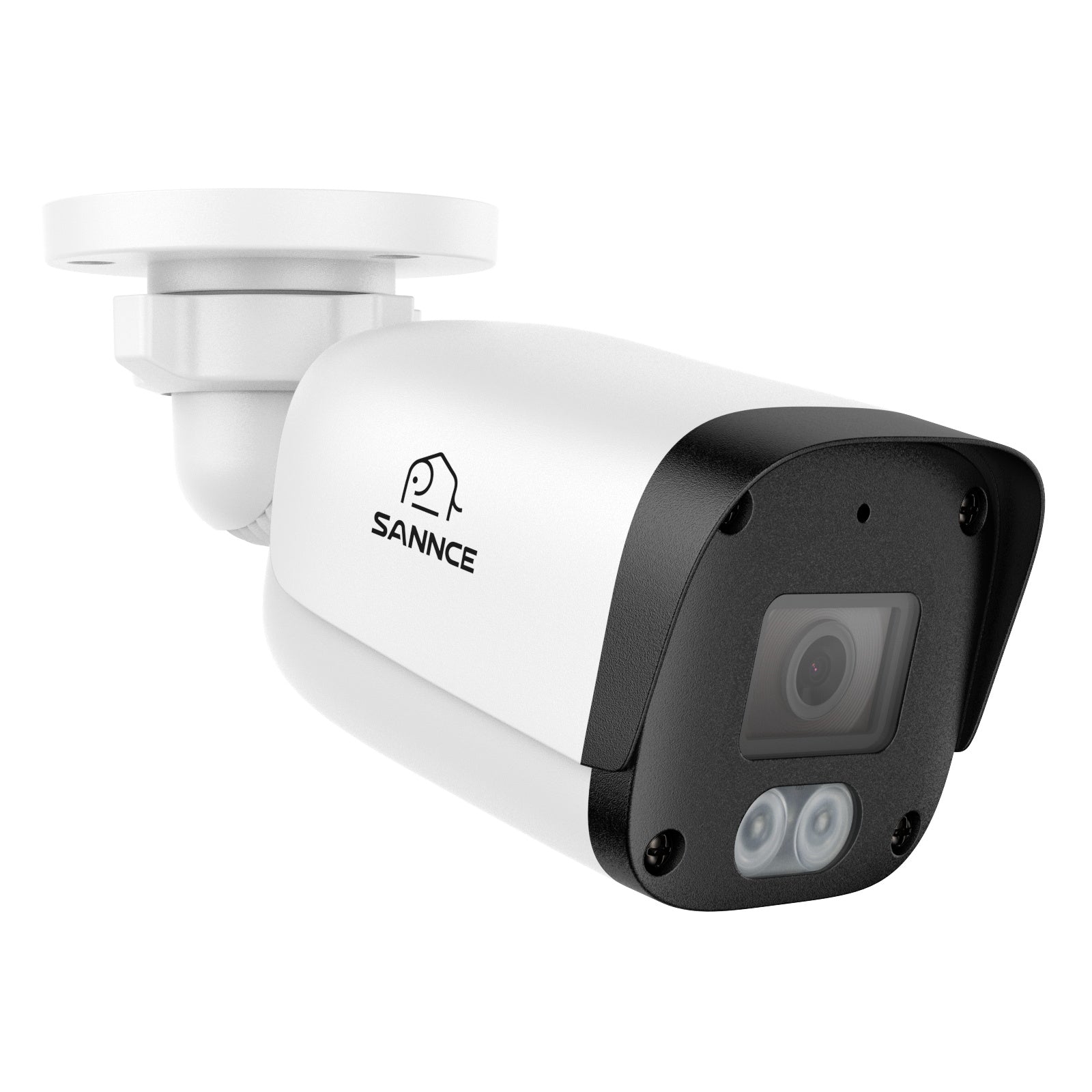

IP Camera
(Model Number: I51EP)
Camera Image Sensor 1/3" Progressive Scan CMOS
Main Stream 50 Hz: 20fps 2880x1620)25fps(2560x1440,2304x1296,1920x1080,1280x720)
60 Hz: 20fps 2880x1620)
30fps(2560x1440,2304x1296,1920x1080,1280x720)
Sub-stream 50 Hz: 25fps(704x576,704x288,640x360,352x288)
60 Hz: 30fps(704x576,704x288,640x360,352x288)
Wide Dynamic Range DWDR
Electron Shutter 1s1/100000s
Image Processing Support electronic zoom, horizontal flip, vertical flip, video flip, strong light suppression, backlight compensation, fog penetration, day/night mode switching, color to black conversion, white balance, wide dynamic range, electronic fog penetration, 3D digital noise reduction, Smart IR.
Min. Illumination Color 0.03 lux (@F2.0,AGC ON)B/W: 0 lux with IR on
Color to B/W Conversion Support internal synchronization, black and white, color, and timing settings.
Video Parameters The image brightness, contrast, saturation, chroma and sharpness are adjustable
Video Blocking 4 pieces
Lens focal length 2.8mm Fixed Focal Length Lens
Angle of View Horizontal FOV 95.3°, vertical FOV 54.1°, diagonal FOV 107.3°
Aperture F2.0
Lens Mount Types M12
Interface Performance Network Port 1 RJ45 10 M/100 M self-adaptive Ethernet port
Audio Port Built-in MIC (Pickup Distance of 5m)
Extended Protocol Onvif Profile S/T CGI
Coding Mode Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bitrate 32Kbps~6Mbps
Main Stream Default Bitrate 4Mbps
Audio Compression Algorithm G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz/32kHz/48kHz
Light Function Number of Infrared LEDs 2 pcs
Night Vision Distance Up to 100 ft/30 m
Other Functions IE Access IE10+Firefox 85.0.4183.121Edge 114.0.1823.79Safari 15.6.1Chrome 114.0.2
IP Address Support static and dynamic IP addresses, and custom network cards
Network Protocol HTTP, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, IPv4, SSH, Unicast, ARP, RTSP, FTP
System Time Clock NTP Time Calibration, Time Zone Setting, Daylight Saving Time
Remote Administration Network Remote Upgrade, Parameter Settings, and Configuration Import and Export
Smart Analysis human & Vehicle Detection
General Functions Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.
General Housing Metal & Plastic
Color White & Black
Operating Power PoE (802.3af), Max.  6W
Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor Use Indoor/Outdoor
Interface Protection IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.
Dimension (L X W X H) 6.45" X 2.6" X 2.6"/ 164 X 66 X 66mm
Weight 0.53 lb./242g
