The smart home & business security system delivers high quality crisp 1080p lite images. Digital WDR enables the outdoor video camera to record sharper videos in challenging bright/dark lighting situations.
The cutting-edge EXIR technology helps the outdoor video camera to deliver crystal-clear night vision images from up to 100 ft away, even in complete darkness. Ensure that your premise and property are protected from dusk to dawn.
Enjoy unlimited remote control via free Sannce App or software on your computers, browsers, phones or tablets. You can get motion-triggered alerts via app pushes or email alerts whenever unusual motions are detected. Never miss an important clip!
24/7 Recording Even Without Ethernet
Remote Access & Motion Alerts
IP66 Waterproof Housing
Compatible 5-in-1 DVR

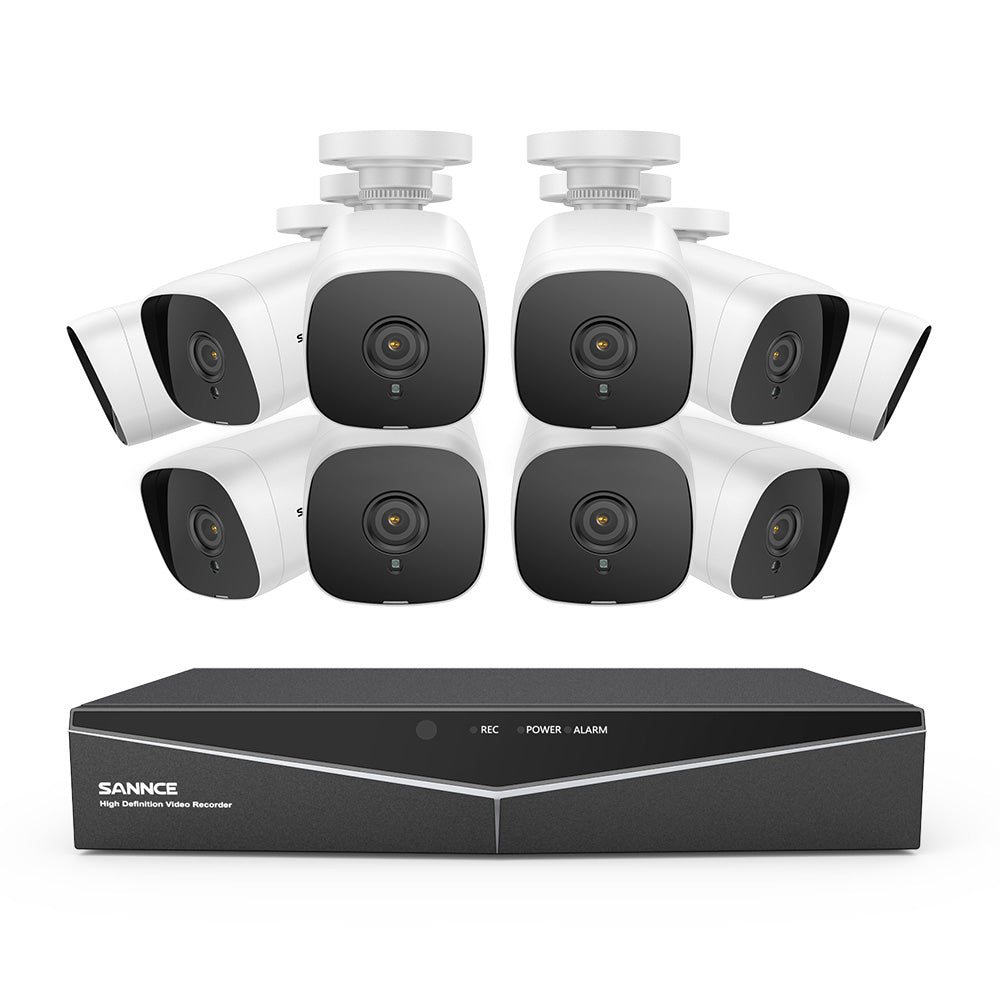

What’s in the Box?
DVR (Model Number: DT61BH) |
||
Video & Audio | Video Compression | H.264+ |
Video Input | 16*BNC | |
Video Output | HDMI and VGA up to 1080p | |
Audio Input / Output | 2CH / 1CH RCA | |
Encode / Decode | 16*1080p Lite@15fps | |
Analog HD Recording Resolution | 16*1080p Lite@15fps | |
Hybird Recording Resolution | 16*1080p Lite@15fps (analog)+4*1080P | |
IPC Recording Resolution | 16*1080P; 8*5MP | |
Playback Resolution | 16CH (Analog mode) | |
Compression | G.711a | |
Intercom | Support | |
Storage | HDD | 1 SATA Interface |
HDD Capacity | Up to 8 TB Capacity | |
Backup | Network, USB storage | |
General | Network Interface | RJ45 X1 (10/100 M) |
USB | USB 2.0 X2 | |
Storage mode | Network, USB storage | |
PTZ control | 1*RS485, Support for multiple PTZ protocol | |
Record mode | Manual>Motion detection>Schedule | |
Inquire mode | Inquire by Time/Calendar/Event/Channel | |
Operating Power | DC 12 V | |
Consumption | <10W (Without HDD) | |
Working Temperature | 14 °F – 131 °F /-10 °C – 55 °C | |
Dimensions (W X H X D) | 10.1” X 9.3” X 1.8”/255 X 236 X 44 mm | |
Weight (Without Hard Disk) | 2.2 lbs./1 kg (Without HDD) | |
Camera (Model Number: CT1GM, CT1GN, CT1GL, CT1GP) |
||
Camera | Video Resolution | 1080p (1920 X 1080) |
Signal System | PAL/NTSC | |
Image Sensor | 1/4" Progressive Scan CMOS | |
Lens | 3.6 mm | |
Min. Illumination | 0.02 Lux@(F1.2 AGC ON); 0 Lux with IR on | |
Angle of View | 70° | |
Number of Infrared LEDs | 12 | |
Night Vision Distance | Up to 100 ft/30 m | |
DNR | DNR | |
Wide Dynamic Range | Digital WDR | |
IR-Cut Filter | Yes | |
Video Output | HD BNC X1 | |
General | Housing | Plastic |
Operating Power | DC 12 V | |
Operating Temperature | -40 °F – 140 °F/-40 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP66 | |
Dimensions (L X W X H) - Bullet | 6.49” x2.36” x 2.36” / 165 x 60 x 60mm | |
Dimensions (L X W X H) - Turret | 3.54” x3.54” x 2.95” / 90 x 90 x 75mm | |
Weight | 0.33 lb./150 g |
